In modern electrical engineering, providing clean, stable power free from electrical noise is crucial for protecting sensitive electronic components and ensuring the continuity of industrial operations. Sudden voltage surges, electrical noise, harmonics, and grounding faults coming from the grid can lead to serious equipment failures or significant occupational safety risks.

This is where the isolation transformer becomes an indispensable component. In this technical guide, we will explain what an isolation transformer is, how it works, its technical advantages, and its most important applications in various industrial sectors.

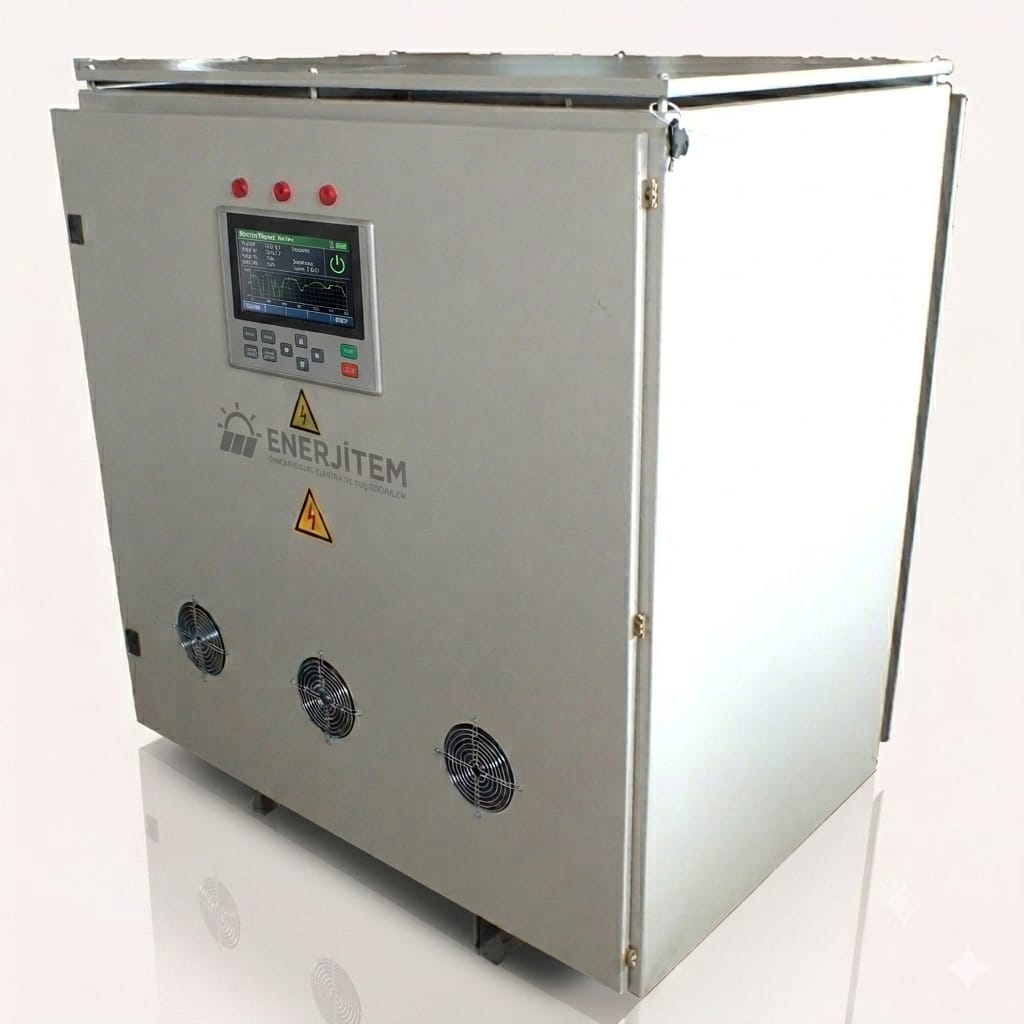

What is an Isolation Transformer?

An isolation transformer is a special type of transformer typically designed with a 1:1 voltage ratio, where the primary (input) and secondary (output) windings are galvanically isolated. This means there is no direct physical or electrical connection between them.

While standard transformers are often designed to step up or step down voltage, the primary purpose of an isolation transformer is not to change the voltage value, but rather to completely separate the load from the electrical grid. If 220V or 380V enters the primary coil, approximately the same voltage is generated in the secondary coil.

Operating Principle and Galvanic Isolation

The fundamental engineering principle of these transformers relies on galvanic isolation. When an alternating current (AC) passes through the primary winding, it generates a continuously changing magnetic flux inside the core made of laminated silicon steel sheets. This magnetic flux passes through the core and generates a similar AC voltage in the secondary winding through electromagnetic induction.

Physical Separation: Because the primary and secondary windings are independently wound around the core and separated by high-quality electrical insulation materials, faults from the grid side cannot directly transfer to the output side.

Floating Output Without Direct Grounding: The output side of an isolation transformer does not share the grounding reference of the electrical grid. It creates a floating voltage system. If a technician accidentally touches a live phase on the secondary side, no current will flow through their body to the ground because there is no closed electrical path back to the neutral point in the grid. This significantly reduces the risk of fatal electric shocks.

Technical Advantages of Isolation Transformers

1. Reduction of Electrical Noise and Harmonics

Industrial environments suffer from high-frequency electrical noise (EMI/RFI) and harmonics generated by variable frequency drives (VFDs), switching power supplies, and heavy machinery. Isolation transformers utilize the natural capacitive reactance between windings, often supported by an electrostatic copper shield resembling a Faraday cage, to block these high-frequency pulses. The result is cleaner power in the form of a stable sine wave for sensitive loads.

2. Elimination of Neutral-to-Ground Voltage

In sensitive electronic applications, such as PLC systems, CNC machines, and laboratory equipment, elevated neutral-to-ground voltage, especially if it exceeds 1.5V to 2V, can lead to data corruption, program crashes, or the burning out of sensitive electronic chips. An isolation transformer allows for the creation of a new, clean neutral-to-ground point on the secondary side, helping to reset this voltage to near 0V.

3. Protection Against Voltage Surges and Electrical Short-Circuit Pulses

The internal impedance of an isolation transformer acts as a protective barrier. High-energy voltage surges and short-circuit current impulses coming from the main grid are attenuated by the transformer's magnetic saturation limits, protecting downstream equipment from catastrophic failures.

Technical Specification Sheet

When selecting or ordering an isolation transformer for industrial projects, the following technical parameters should be evaluated:

Power Capacity:
From 1 kVA to 1000 kVA and more.
Selected based on the continuous and peak load of the system.

Voltage Ratio:
Typically 1:1, such as 400V/400V or 230V/230V.
It can also be designed to step up or step down voltage if voltage conversion is needed simultaneously.

Winding Material:
Electrolytic copper or aluminum.
Copper is preferred due to its higher conductivity, lower thermal losses, and longer operational life.

Insulation Class:
Class F at 155°C or Class H at 180°C.
This class defines the maximum thermal limits that the transformer can safely withstand.

Electrostatic Shielding:
Electrostatic copper shield.
Placed between windings to reduce common-mode noise.

Protection Rating:
From IP20 to IP65.
Selected according to environmental conditions such as dust, humidity, or outdoor use.

Efficiency:
From 97% to 99%.
Ensures reduced energy loss due to heat dissipation.

Most Important Industrial Applications

Isolation transformers are essential in sectors where power instability leads to direct financial losses or significant safety risks.

Medical and Healthcare Sector:
Operating rooms, intensive care units, MRI machines, CT scanners, and X-ray machines rely on isolation transformers to power ungrounded medical networks, protecting patients from dangerous microcurrents.

CNC Machines and Robotics:
Used to prevent grid harmonics from affecting sensitive electronic control panels in multi-axis CNC machines and robotic control units.

Data Centers and Telecommunication Stations:
Used with UPS systems to ensure clean, undisturbed power lines for high-density server cabinets.

Marine and Yacht Applications:
When connecting boats to shore power, isolation transformers help prevent galvanic corrosion, which is the rapid corrosion of submerged metal components due to stray DC currents in the water.

Conclusion

An isolation transformer is not just a simple electrical component, but a fundamental protective barrier that safeguards high-value industrial investments, ensures data integrity, and maintains personal safety. The use of a professionally designed and highly efficient isolation transformer is one of the most effective ways to strengthen electrical infrastructure against unforeseen grid disturbances.
